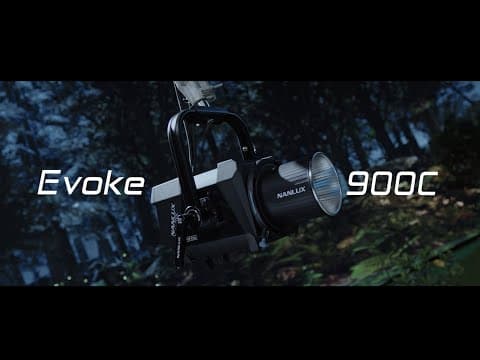

Evoke 900C
Full-color LED Spotlight
Features
- RGBLAC Color Mixing System — Full‑color LED spotlight equipped with RGBLAC six‑color mixing system
- Ultra‑high Brightness Output — 12,940 lux @ 3m (5600K, 45° reflector), rated output 940W
- Ultra‑wide CCT Range — 1800K–20000K with G/M ±200 adjustment
- More Color Modes — Advanced HSI, RGBW, XY Coordinate, and GEL mode
- IP55 Weather Resistant — Sturdy build quality; fixture and power supply both IP55 rated
- Fully Dimmable Lighting — 0–100% with ultra‑precise 0.1% increments
- Comprehensive Wired & Wireless Control — On‑board, Remote Controller, NANLINK APP, Wired Controller, DMX/RDM, LumenRadio CRMX, Art‑Net/sACN
- Built‑in Effects — 15 customizable practical effects
Specifications
Rated Power
940W
Input Voltage/Current
DC48V/18.75A Max, AC100-240V 50/60Hz
CCT
1800K-20000K(G/M±200)
CRI
Average 96
TLCI
Average 96
TM-30Rf
Average 94
TM-30Rg
Average 100
SSI（3200K）
81
SSI（5600K）
73
Dimming
0-100%, 0.1% increment
IP Rating
IP55
Control
On-board, Remote Control, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN
Effect
HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/File, Disco, Bad Bulb, Firework, Explosion and Welding
Product Size
Light Fixture(without COB protective cap)：330 × 241 × 210mm / 13.0 × 9.5 × 8.3" Power Supply：146 × 125 × 344mm / 5.7 × 4.9 × 13.5"
Product Weight
Light Fixture：7.7kg / 16.98lb Yoke：1.84kg / 4.06lb Power Supply：4.5kg /9.92lb RF-NLM-45 Reflector：0.62kg / 1.37lb DC Connection Cable 7.5M：2.62kg /4.98lb AC Power Cable 6M：0.88kg / 1.94lb
Certifications
CE, UKCA, RoHS, IP55, PSE, FCC-ID, KCC, BIS, ETL, cETL, NCC
